Current page: Home > ProductsAll automatic horizontal scraper gravity discharge screen centrifuge
Main uses
This product is mainly used in chemical, pharmaceutical and other fields for solid-liquid separation of raw material intermediates and finished products.
Main features
?♦ All closed and clean structure, meets GMP standards and aseptic production requirements on medicines and foods.
?♦ Large flip cover faciliates washing drum and all parts in working area; quick-open type hydraulic lock structure is convenient and reliable for operation.
?♦ Dual shaft sealed structure can ensure that clean areas are not contaminated with lubricants and other contaminants
?♦ Adopts PLC control, touch screen operation, can realize man-machine conversation, convenient for operation and maintenance.
?♦ Actuating element adopts electricity-gas-hydraulic control. Overall process monitoring of on-line cleaning and online sterilization.
?♦ Adopts frequency converting control. Drum speed is stepless adjustable. Technology velocity can be set according to requirements.
?♦ Liquid damping vibration isolation device. No floating platform is required.
?♦ Gas reverse blowing device can effectively remove residual filter cake layer.
?♦ Online cleaning system.
?♦ All automatic online monitoring nitrogen protection system can ensure the centrifue works at positive pressure of inert gases. Online oxygen analyzer can be equipped with to realize anti-explosion requirements if necessary.
?♦ Online sterilization device can be equipped with to perform online sterilization in centrifugal cavity and pipeline.
?♦ Perfect multiple safety protection system, rotate speed monitoring, over vibration protection, open cap protection, overheating and overloading protection, main bearing temperature rise protection, oil cutting-off protection and other devices can ensure the safe operation of the centrifuge.
Configuration selection
?♦ Opening assistance: hydraulic, electric, and pneumatic
?♦ Motor drive: common motor, explosion-proof motor and variable frequency motor
?♦ Brake mode: energy consumption and feedback
?♦ On-line cleaning: Shower ball and shower pipe
?♦ Electrical components: Brand supply
?♦ Surface treatment: Mirror polishing, drawing, matting and passivating
?♦ Safety protection: nitrogen protection system, vibration protection, temperature protection, speed monitoring, overload protection and electromechanical interlocking
?♦ Nitrogen protection: automatic nitrogen charging device, oxygen content detection device, liquid seal device and gas-liquid separation device
?♦ Discharge method: slanting type and packing auger delivery
?♦ Vibration reduction: Rubber damping and liquid damping
Materials:
?♦ Stainless steel 304, 321, 316 and 316 L
?♦ Carbon steel or stainless steel coating PE, PP, HALAR (F30), PTFE (F4)
Working process
Bucket-inclined discharge

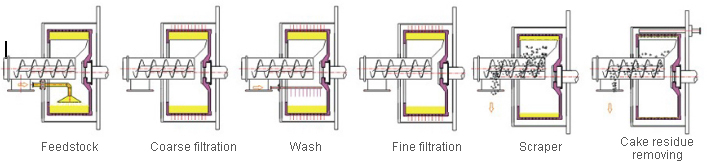

Auger delivery discharge
Technical parameters
|
Item |
GK800 |
GK1000 |
GK1250 |
GK1600 |
|
Drum diameter (mm) |
800 |
1000 |
1250 |
1600 |
|
Drum length (mm) |
450 |
500 |
625 |
800 |
|
Working volume of drum (L) |
100 |
165 |
370 |
690 |
|
Maximum loading capacity (kg) |
135 |
225 |
500 |
930 |
|
Drum speed (r/min) |
1550 |
1350 |
1200 |
950 |
|
Maximum separation factor |
1080 |
1020 |
1007 |
808 |
|
Motor power(kW) |
30 |
37 |
55 |
90 |
|
Size (mm) |
2550*1850*1350 |
2400*2150*1700 |
3450*3300*2500 |
4200*2750*2300 |
|
Weight (kg) |
3500 |
7300 |
9000 |
15000 |
